Message deserialization issues during node initialization



  • Hello there!

    First of all, thanks for this project... I'm still in my first steps but that looks pretty cool: simple, feature full, efficient and tightly bound to MySensors (looks better than most of other gateway I could have tested till now).

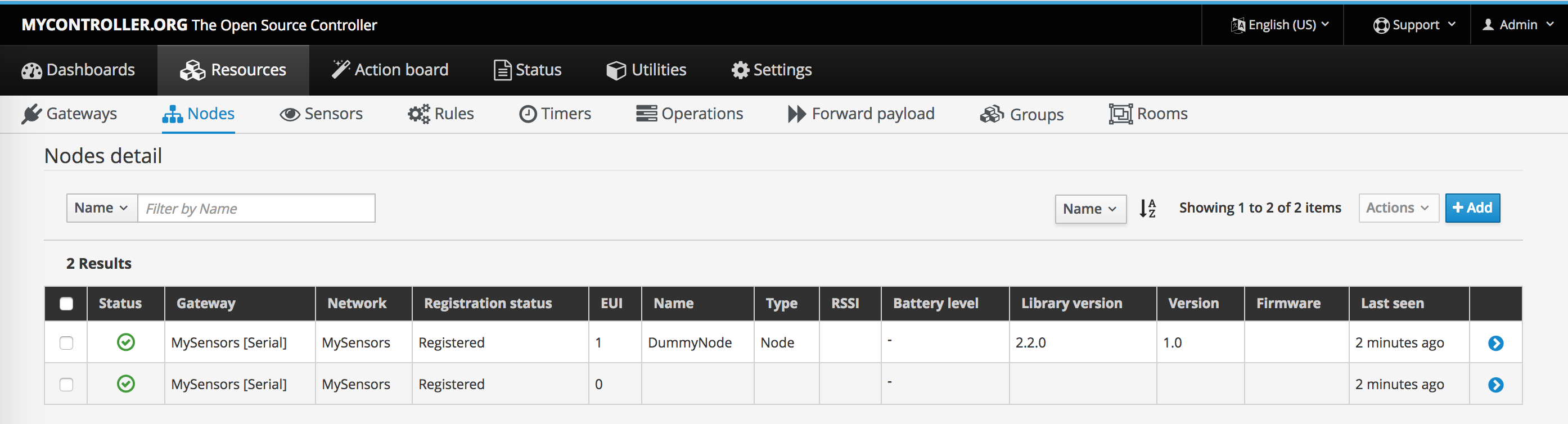

    I face a problem just after having successfully configured my MySensors serial gateway, when I try to make my first node join: I see two rows whereas I expect only one (only one node is up).

    The node is a simple S_BINARY node, that runs over RFM69HW (moteino, same for gateway).

    0_1528318569467_Capture d’écran 2018-06-06 à 22.55.43.png

    In addition, mycontroller logs several errors:

    2018-06-06T20:51:36.187+0000 [Thread-15] ERROR o.m.s.g.s.SerialDataListenerjSerialComm - Exception,
    org.mycontroller.standalone.exceptions.MessageParserException: Unknown message format:[], gatewayId:1
            at org.mycontroller.standalone.provider.mysensors.MessageParserAbstract.update(MessageParserAbstract.java:118)
            at org.mycontroller.standalone.provider.mysensors.MessageParserSerial.getMessage(MessageParserSerial.java:32)
            at org.mycontroller.standalone.provider.mysensors.MessageParserSerial.getMessage(MessageParserSerial.java:28)
            at org.mycontroller.standalone.gateway.serial.SerialDataListenerjSerialComm.serialEvent(SerialDriverJSerialComm.java:146)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener.waitForSerialEvent(SerialPort.java:937)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener$1.run(SerialPort.java:885)
            at java.lang.Thread.run(Thread.java:745)
    2018-06-06T20:51:36.206+0000 [Thread-15] ERROR o.m.s.db.dao.BaseAbstractDaoImpl - unable to update item:[GatewayTable(id=1, enabled=true, name=MySensors, networkType=MY_SENSORS, timestamp=1528318294769, state=DOWN, statusMessage=ERROR: Unknown message format:[], gatewayId:1, statusSince=1528318296197, type=SERIAL, properties={br=115200, ackEnabled=true, txDelay=0, ackWaitTime=20, failedRetryCount=1, reconnectDelay=120, dr=Auto, pn=/dev/ttyUSB0})]
    java.sql.SQLException: Unable to run update stmt on object GatewayTable(id=1, enabled=true, name=MySensors, networkType=MY_SENSORS, timestamp=1528318294769, state=DOWN, statusMessage=ERROR: Unknown message format:[], gatewayId:1, statusSince=1528318296197, type=SERIAL, properties={br=115200, ackEnabled=true, txDelay=0, ackWaitTime=20, failedRetryCount=1, reconnectDelay=120, dr=Auto, pn=/dev/ttyUSB0}): UPDATE "gateway" SET "enabled" = ?, "name" = ?, "networkType" = ?, "timestamp" = ?, "state" = ?, "statusMessage" = ?, "statusSince" = ?, "type" = ?, "properties" = ? WHERE "id" = ?
            at com.j256.ormlite.misc.SqlExceptionUtil.create(SqlExceptionUtil.java:25)
            at com.j256.ormlite.stmt.mapped.MappedUpdate.update(MappedUpdate.java:129)
            at com.j256.ormlite.stmt.StatementExecutor.update(StatementExecutor.java:472)
            at com.j256.ormlite.dao.BaseDaoImpl.update(BaseDaoImpl.java:409)
            at org.mycontroller.standalone.db.dao.BaseAbstractDaoImpl.update(BaseAbstractDaoImpl.java:276)
            at org.mycontroller.standalone.gateway.config.GatewayConfig.setStatus(GatewayConfig.java:109)
            at org.mycontroller.standalone.gateway.serial.SerialDataListenerjSerialComm.serialEvent(SerialDriverJSerialComm.java:179)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener.waitForSerialEvent(SerialPort.java:937)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener$1.run(SerialPort.java:885)
            at java.lang.Thread.run(Thread.java:745)
    Caused by: org.postgresql.util.PSQLException: ERROR: invalid byte sequence for encoding "UTF8": 0x00
            at org.postgresql.core.v3.QueryExecutorImpl.receiveErrorResponse(QueryExecutorImpl.java:2458)
            at org.postgresql.core.v3.QueryExecutorImpl.processResults(QueryExecutorImpl.java:2158)
            at org.postgresql.core.v3.QueryExecutorImpl.execute(QueryExecutorImpl.java:291)
            at org.postgresql.jdbc.PgStatement.executeInternal(PgStatement.java:432)
            at org.postgresql.jdbc.PgStatement.execute(PgStatement.java:358)
            at org.postgresql.jdbc.PgPreparedStatement.executeWithFlags(PgPreparedStatement.java:171)
            at org.postgresql.jdbc.PgPreparedStatement.executeUpdate(PgPreparedStatement.java:138)
            at com.j256.ormlite.jdbc.JdbcDatabaseConnection.update(JdbcDatabaseConnection.java:289)
            at com.j256.ormlite.jdbc.JdbcDatabaseConnection.update(JdbcDatabaseConnection.java:212)
            at com.j256.ormlite.stmt.mapped.MappedUpdate.update(MappedUpdate.java:101)
            ... 8 common frames omitted
    2018-06-06T20:51:36.210+0000 [Thread-15] ERROR o.m.s.g.s.SerialDataListenerjSerialComm - Exception,
    org.mycontroller.standalone.exceptions.MessageParserException: Unknown message format:[], gatewayId:1
            at org.mycontroller.standalone.provider.mysensors.MessageParserAbstract.update(MessageParserAbstract.java:118)
            at org.mycontroller.standalone.provider.mysensors.MessageParserSerial.getMessage(MessageParserSerial.java:32)
            at org.mycontroller.standalone.provider.mysensors.MessageParserSerial.getMessage(MessageParserSerial.java:28)
            at org.mycontroller.standalone.gateway.serial.SerialDataListenerjSerialComm.serialEvent(SerialDriverJSerialComm.java:146)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener.waitForSerialEvent(SerialPort.java:937)
            at com.fazecast.jSerialComm.SerialPort$SerialPortEventListener$1.run(SerialPort.java:885)
            at java.lang.Thread.run(Thread.java:745)
    2018-06-06T20:51:52.572+0000 [mc-th-pool-0] INFO  o.m.s.provider.EngineAbstract - Seems like failed to send this message. There is no ACK received! Retried 1 time(s). MessageImpl(gatewayId=1, nodeEui=1, sensorId=SENSOR_BC, type=Internal, subType=Config, ack=1, payload=M, isTxMessage=true, timestamp=1528318312029, properties=null)


    It looks like I receive weird payloads:
    Unknown message format:[^@]
    or even
    java.lang.NumberFormatException: For input string: "^@^@0"

    Do you have any idea?

    Cheers,
    Nicolas



  • The DummyNode sketch is actually pretty simple and uses MySensors@2.2.0:

    #define MY_RADIO_RFM69
    #define MY_IS_RFM69HW
    #define MY_RFM69_FREQUENCY (RFM69_868MHZ)

    #define MY_DEBUG

    #include <MySensors.h>

    #define ID_LED_COMMAND 1
    #define LED_PIN 9

    void setLed(bool status) {
    	digitalWrite(LED_PIN, status ? HIGH : LOW);
    }

    void before() {
    	pinMode(LED_PIN, OUTPUT);
    	setLed(true);
    }

    void setup() {
    }


    void presentation() {
    	sendSketchInfo("DummyNode", "1.0");
    	present(ID_LED_COMMAND, S_BINARY, "Set onboard LED on/off");
    }

    void loop() {
    	wait(5000, C_SET, V_STATUS);
    }

    void receive(const MyMessage &msg) {
    	switch (msg.type) {
    	case V_STATUS:
    		setLed(msg.getBool());
    		break;
    	}
    }


    But probably due to the problem above, I see my sensor, but I can't do anything with it (I don't see any call to action to switch the state of my S_BINARY)


    For instance, I'd to know where I can find the button described here in the wiki.

    Cheers,
    Nicolas


  • ADMIN

    @nicolas Thank you for your interest with MyController.

    when I try to make my first node join: I see two rows whereas I expect only one (only one node is up).

    Gateway will act as a Node too. Gateway id is 0. So it is showing two nodes, one is the gateway and another one your node.

    It looks like I receive weird payloads:
    Unknown message format:[^@]
    or even
    java.lang.NumberFormatException: For input string: "^@^@0"

    Do you have any idea?

    can you post your gateway configuration page? Looks like your gateway sends some weird payloads.

    But probably due to the problem above, I see my sensor, but I can't do anything with it (I don't see any call to action to switch the state of my S_BINARY)

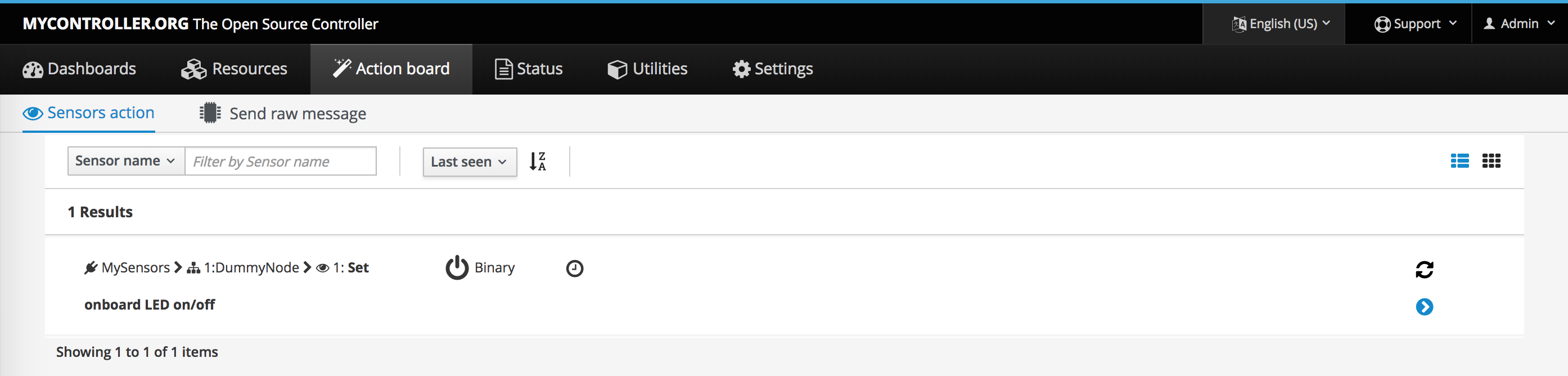

    You can add the switch in two ways,

    • Add it to UI directly. (add a Status variable)
    • Add request payload from your node code(request(ID_LED_COMMAND, V_STATUS);)

    UI (edit sensor on ui):


    Node code:

    void presentation() {
    	sendSketchInfo("DummyNode", "1.0");
    	present(ID_LED_COMMAND, S_BINARY, "Set onboard LED on/off");
            request(ID_LED_COMMAND, V_STATUS);
    }



  • Hi @jkandasa and thanks a lot for your answer!

    Here is my gateway sketch:

    // Enable debug prints to serial monitor
    #define MY_DEBUG

    // Enable and select radio type attached
    #define MY_RADIO_RFM69
    #define MY_IS_RFM69HW
    #define MY_RFM69_FREQUENCY (RFM69_868MHZ)

    // Enable serial gateway
    #define MY_GATEWAY_SERIAL

    #include <MySensors.h>

    void setup()
    {
            // Setup locally attached sensors
    }

    void presentation()
    {
            // Present locally attached sensors
    }

    void loop()
    {
            // Send locally attached sensor data here
    }


    I enabled MY_DEBUG but it may be a mistake and the cause of the problem. I'll try without!

    I got it for the button part, everything looks ok for my dummy node, thanks!
